3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255

3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255

$23.95 $98.40
Skip to product information
3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255
  • 3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255
  • 3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255
  • 3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255
  • 3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255
  • 3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255
  • 3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255
  • 3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255
  • 3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255
3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255

3HP SPL Single Phase 230V AC Non-Reversible Compressor Duty Motor, 5/8" Keyed Shaft, 3480 RPM, 56 Frame Y205255

$23.95 $98.40
Shipping calculated at checkout.
【Wide Applications】- VONZOER Air compressor motor is universal and suitable for air compressors, steel industry, construction industry, water pump industry, fan industry, household appliances, agricultural machinery and other fields.【Main Parameters】- Horsepower: 3HP; Amperage: 15 FLA AT 230V; AC Phase: Single Phase; Voltage: 230V AC (NOT suited for 208V incoming); RPM: 3480 RPM; Frame: 56; Shaft Type: Keyed; Shaft Diameter: 5/8" Keyed shaft; Shaft Length: 2 1/16"; Mounting Type: Base-Mounted; Rotation: CCW When viewed from shaft end; Frequency: 60HZ; Service Factor: 1.0; Enclosure: ODP (Open Drip-Proof); Overload: Yes/Manual reset button; Reversible/Non-Reversible: Non-Reversible; Weight: 38 lbs【Premium Material】- The electric motor is made of high-grade steel. Strong and durable materials can protect the motor well and protect the inner circuit from thermal overloading. It includes the stable mounting bracket.【High Efficiency】- Compact structure and small size, the air compressor motor can run at the maximum speed 3480 RPM, high working efficiency; there are many heat dissipation holes, so that it has great heat dissipation performance.【Totally Enclosed Fan】- Featured with big fan at one end, which cools the motor in long-time running, even in damp and dusty environments, reduces energy costs, reduces running temperature, increases service lifetime.

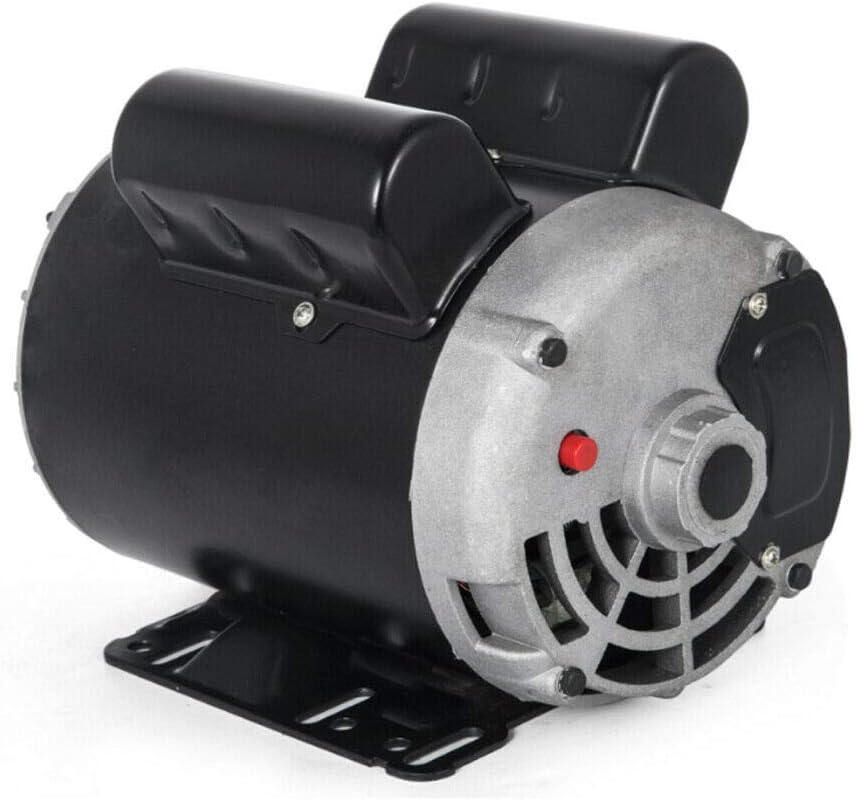

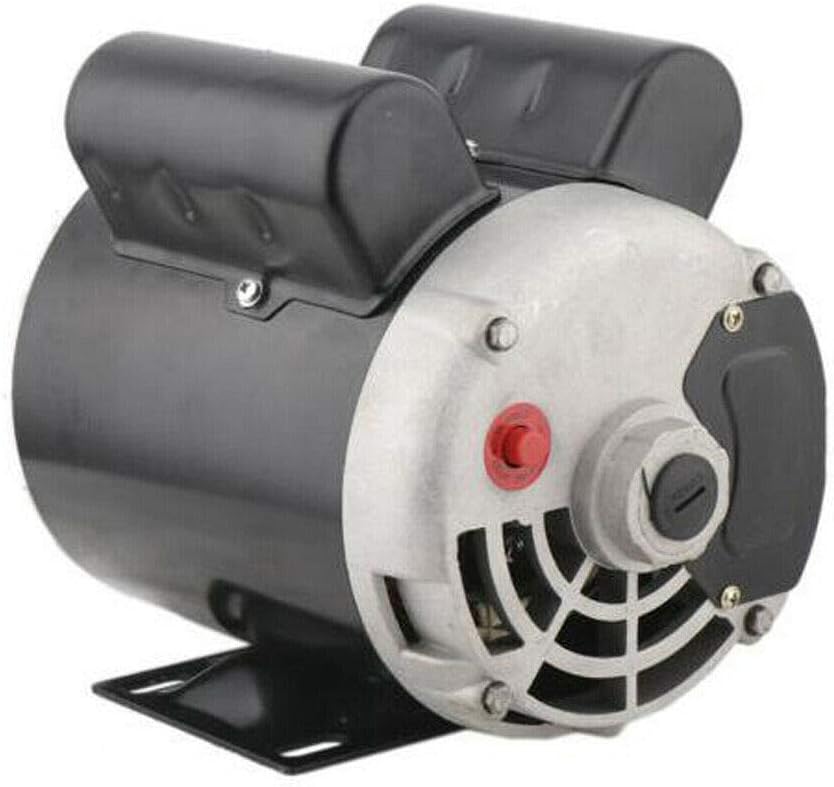

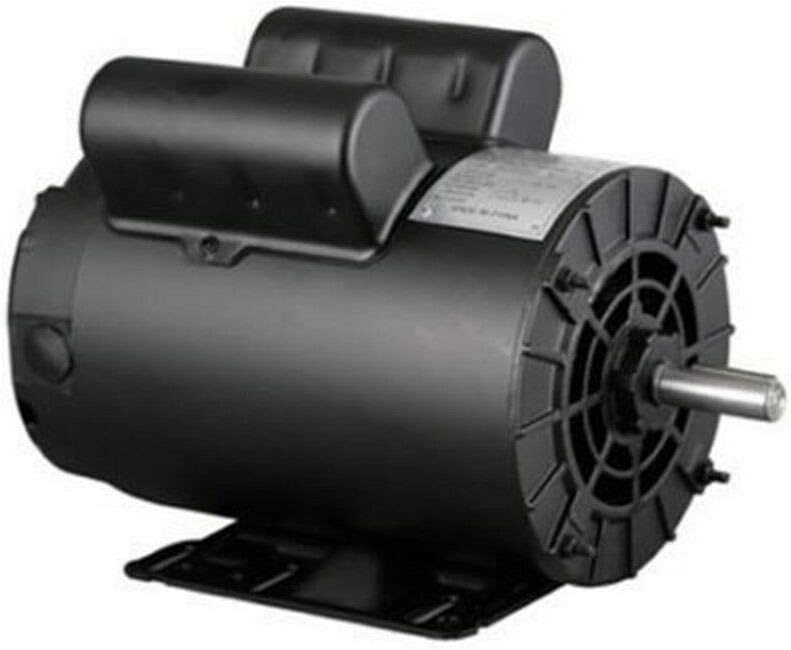

DescriptionVONZOER 3HP SPL 230-volt compressor duty electric motor. This motor features a 56 frame with a 5/8" diameter shaft and is 3480 RPM. This is a non-reversible motor and features counter-clockwise (CCW) rotation facing the shaft.SpecificationsItem Name: Air Compressor MotorHorsepower: 3HPAmperage: 15 FLA AT 230VAC Phase: Single PhaseVoltage: 230V AC (NOT suited for 208V incoming)RPM: 3480 RPMFrame: 56Shaft Type: KeyedShaft Diameter: 5/8" Keyed shaftShaft Length: 2 1/16"Mounting Type: Base-MountedRotation: CCW When viewed from shaft endFrequency: 60HZService Factor: 1.0Enclosure: ODP (Open Drip-Proof)Overload: Yes/Manual reset buttonReversible/Non-Reversible: Non-ReversibleWeight: 38 lbsNoteWiring schematic fom 230V shown on attached picture of motor nameplate.Package Includes1 * 3HP SPL Single Phase Air Compressor Motor
