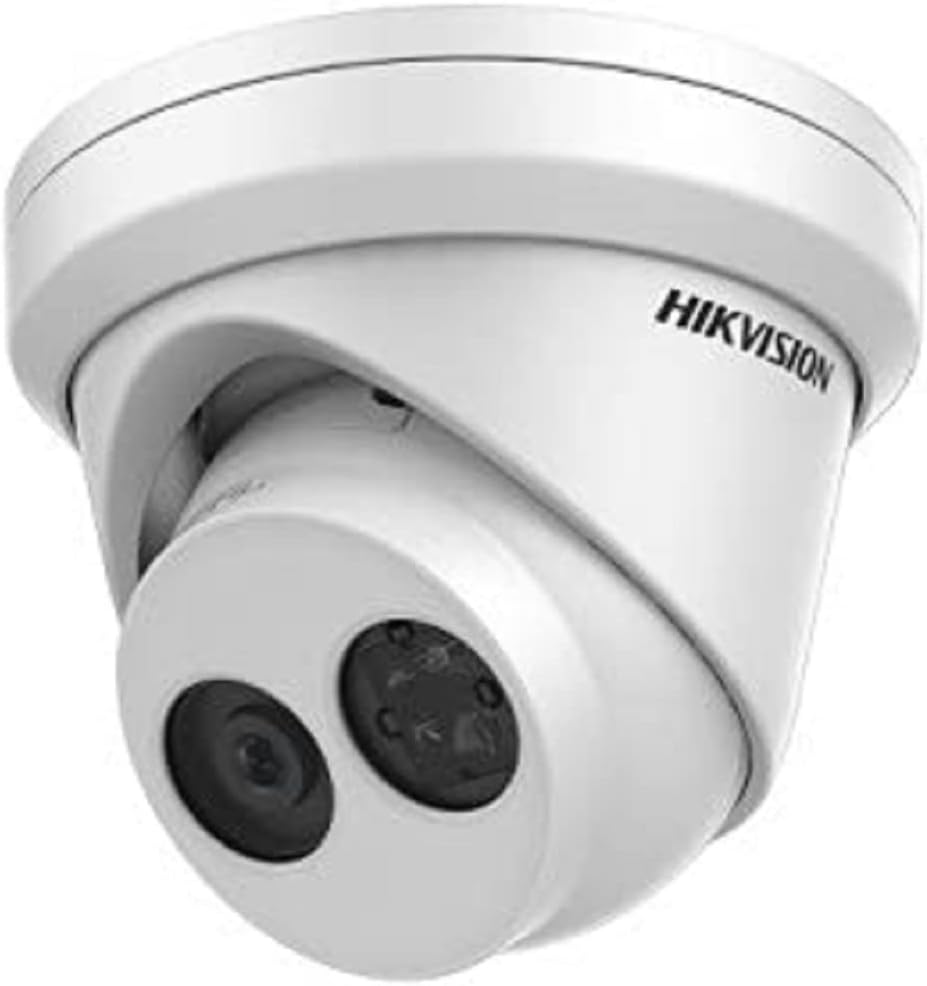

4MP IP Turret Network Camera with 2.8mm Lens C2595
4MP IP Turret Network Camera with 2.8mm Lens C2595
4 Megapixel High Resolution | Full HD1080p Video | Dual Video Streams
2.8 mm Fixed Lens | 120 dB Wide Dynamic Range | EXIR
Support Newest Video Compression h.265+ and Auto Complies with old H.264 format
Rated IP 67 Weather proof
Camera
Image Sensor: 1/3' Progressive Scan CMOS
Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGCON), 0 Lux with IR
Lens: 2.8 mm @ F1.6: horizontal FOV: 103��, vertical FOV: 58��, diagonal FOV:123��
Lens Mount: M12
Adjustment Range: Pan: 0�� to 360��, tilt: 0�� to 75��, rotate: 0�� to 360��
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 256Kbps~16Mbps
Max. Image Resolution: 2688 �� 1520
Frame Rate: 50Hz:25fps (2688 �� 1520, 2560 �� 1440, 2304 �� 1296, 1920 �� 1080), 60Hz:30fps (2688 �� 1520, 2560 �� 1440, 2304 �� 1296, 1920 �� 1080)
Sub Stream: 50Hz: 25fps (640 �� 480, 640 �� 360, 320 �� 240), 60Hz: 30fps (640 ��480, 640 �� 360, 320 �� 240)
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS(NFS,SMB/CIFS), ANR
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
ISAPI
General
Operating Conditions: -30 ��C ~ 60 ��C (-22 ��F ~ 140 ��F), Humidity 95% or less(non-condensing)
Power Supply: 12 VDC �� 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.5A, max. 6W, PoE (802.3af, 37V to 57V), 0.2A to0.1A, max. 7.5W
Weather Proof: IP67
IR Range: Up to 30m
Dimensions: Camera: �� 127.3 �� 95.9 mm (�� 5.0' �� 3.4')
Weight: Camera: Approx. 610 g (1.3 lb.)
